A file server is a centralized system that provides users and applications with shared access to files, folders, and data storage over a network. In modern enterprise environments, ensuring uninterrupted access to these resources is critical — downtime can lead to productivity loss, data inconsistency, and customer dissatisfaction. This is where the concept of high availability becomes essential.
File server clustering is a strategy used to achieve high availability by linking multiple servers together to operate as a single system. If one server fails, another immediately takes over, minimizing service disruption. This setup not only enhances fault tolerance but also improves performance through load balancing across the cluster.
Central to this architecture is the clustered file system, which enables multiple servers to read from and write to a common storage pool simultaneously. This shared access is typically supported by shared file systems and clustered storage, ensuring seamless failover and continuous data availability. Together, these components form the foundation of a robust and resilient file server cluster infrastructure.
What is a Clustered File System?
A clustered file system (also referred to as a cluster file system) is a specialized file system designed to allow multiple servers within a cluster to access the same storage resources simultaneously. Unlike traditional file systems, which are limited to a single server, a clustered file system supports concurrent read/write operations across several nodes, enabling higher availability and scalability.
At its core, a clustered file system ensures that all nodes in the file server cluster have a consistent view of the data. This is typically achieved using a shared file system, where the underlying storage is accessible by all participating servers. Such systems are crucial for environments that require continuous access to large volumes of data, such as enterprise file sharing, virtualization, and database management.
There are two main architectural models:
- Shared-disk architecture, where multiple servers access the same physical storage (often through a SAN cluster, or Storage Area Network cluster).
- Shared-nothing architecture, where each server has its own storage and synchronization happens over the network.
Real-world implementations of clustered file systems include Windows Server Clustered File System, IBM’s GPFS (now Spectrum Scale), and Oracle Cluster File System (OCFS). In these setups, the clustered file system works hand-in-hand with failover clustering and storage replication to maintain data integrity, support high-performance workloads, and ensure continuous service delivery even during hardware failures. If you’re unfamiliar with setting up a standalone file server, this article on proposing a file server solution for a small business can provide a helpful foundation before diving into clustering.
Benefits of Clustered File Servers
Clustered file servers offer a range of advantages that are essential for modern enterprises where uptime, performance, and scalability are critical. By linking multiple servers together, a Windows file server cluster ensures that services remain available even when individual nodes fail.
One of the primary benefits is high availability and fault tolerance. In a clustered environment, if one server node fails due to hardware or software issues, another node in the cluster can immediately take over, minimizing downtime and ensuring business continuity.
Load balancing is another major advantage. With multiple nodes actively serving client requests, a clustered setup can distribute workloads evenly, improving overall system performance and responsiveness. This is particularly valuable in environments with heavy file access demands, such as media companies, research institutions, or virtual desktop infrastructures.
Cluster storage also contributes to simplified management. Centralized storage accessible by all nodes in the cluster reduces the complexity of maintaining multiple isolated file systems. Administrators can manage shared volumes and monitor performance from a unified interface, often integrated with tools like Microsoft Failover Cluster Manager.
Lastly, scalability is a key feature. As organizational needs grow, additional nodes and storage can be added to the cluster without major disruption. This flexibility makes clustered file servers an ideal choice for dynamic IT infrastructures aiming to scale operations while maintaining service reliability and performance.
Scale-Out File Server (SOFS) in Windows Server
The Scale-Out File Server (SOFS) is a specialized role within the Windows Server file server architecture, designed to provide high-performance, continuously available file shares for applications and virtual machines. Unlike traditional file servers that may rely on a single node or limited failover capabilities, SOFS enables active-active clustering, allowing multiple servers in a Microsoft cluster to simultaneously access and serve data from shared storage.
One of the key distinctions between a standard file server and a scale-out file server is the ability to distribute file-based workloads across multiple nodes. This enhances both performance and availability, especially in scenarios where consistent access to large data volumes is essential—such as storing Hyper-V virtual machine files or hosting application data that requires the Server Message Block (SMB) protocol.
SOFS fully supports SMB 3.0, which introduces advanced features like SMB Transparent Failover, SMB Direct, and SMB Multichannel. These capabilities ensure that if a node in the cluster goes offline, file operations continue seamlessly without disrupting client applications. This is crucial for businesses relying on 24/7 uptime and real-time data access.
Microsoft’s support for SOFS in failover clusters further enhances its reliability. Administrators can deploy SOFS using Cluster Shared Volumes (CSV) for backend storage, simplifying management and improving storage utilization. The system intelligently redirects client requests to the optimal node, boosting throughput and minimizing latency.
In summary, a scale-out file server in a Windows Server environment is ideal for high-demand enterprise applications. With built-in load balancing, failover capabilities, and seamless SMB integration, SOFS delivers the performance and resilience modern IT operations require.
Cluster Shared Volumes (CSV) Explained
Cluster Shared Volumes (CSVs) are a core component of clustered storage in Windows Server environments. CSVs enable multiple nodes in a failover cluster to simultaneously access the same cluster shared volume, allowing for seamless data access and increased reliability.
Traditionally, only one node at a time could own and access a disk in a Windows Server cluster, which limited flexibility and performance. CSVs overcome this by allowing all nodes to access a shared NTFS or ReFS-formatted volume concurrently. This shared access model supports high availability and efficient workload distribution across the cluster.
In real-world scenarios, CSVs are extensively used for storing Hyper-V virtual machine files, enabling VMs to move between nodes with minimal downtime. They are also used in file server clustering, where multiple file servers deliver continuous access to shared data. This setup ensures that even if one node fails, another node can immediately take over without interrupting service.
The performance benefits of cluster shared volumes stem from intelligent I/O redirection, where the cluster routes disk access through the optimal path. Additionally, CSVs enhance data consistency and integrity through coordinated locking and caching mechanisms.
Overall, Cluster Shared Volumes are fundamental to building a resilient and scalable clustered storage environment. They simplify storage management, reduce the risk of downtime, and enable enterprise-grade performance for mission-critical workloads.

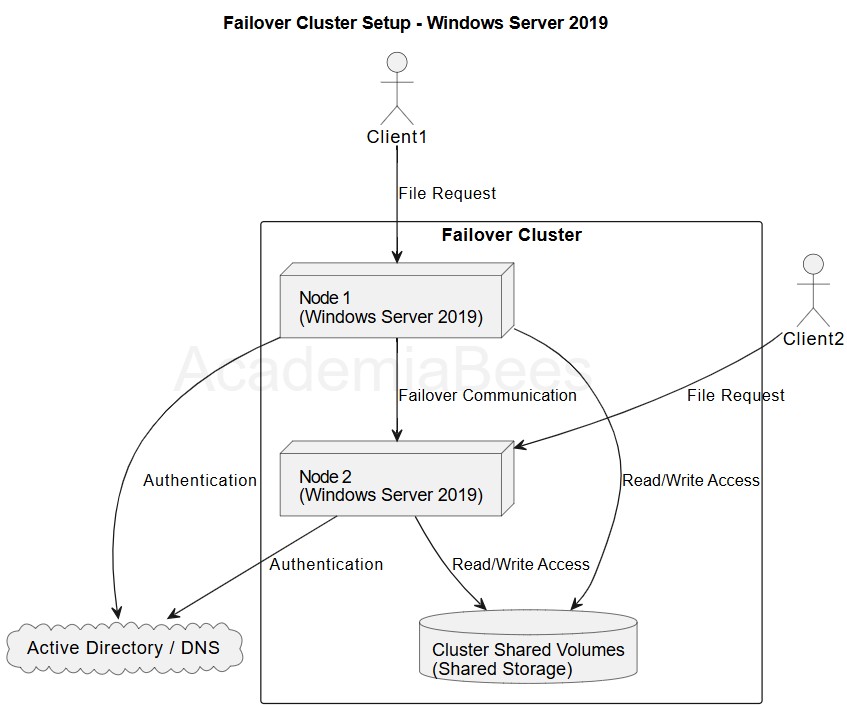

Step-by-Step Guide: Configuring Failover Cluster in Windows Server 2019
Setting up a failover cluster in Windows Server 2019 is essential for ensuring high availability of critical workloads, including file services. Below is a step-by-step guide to configure a failover cluster in Windows Server 2019, focusing on a basic 2 node cluster configuration.
Pre-requisites for Clustering
Before starting the configuration:
- Ensure both nodes run Windows Server 2019 and are domain-joined.
- Each server must have identical hardware configurations and access to shared storage (e.g., iSCSI or SAN).
- Enable the Failover Clustering feature using Server Manager or PowerShell:
- Install-WindowsFeature -Name Failover-Clustering –IncludeManagementTools
Step-by-Step Setup of a 2-Node Cluster
- Validate Configuration:
- Open Failover Cluster Manager.
- Click Validate Configuration and follow the wizard to test network, storage, and system compatibility.
- Review the validation report for any issues before proceeding.
- Create the Cluster:
- In Failover Cluster Manager, click Create Cluster.
- Add the two servers as cluster nodes.
- Assign a name and IP address for the new Windows Server cluster.
- Complete the wizard to finalize cluster creation.
- Add Clustered File Server Role:
- In the cluster manager, go to Roles > Configure Role.
- Select File Server and choose the File Server for general use option.
- Name the file server and assign a client access point (name + IP).
- Select shared storage and complete the wizard.
Testing Failover and Validation
- Move the file server role manually between nodes to test failover behavior.
- Check that the 2 node cluster transfers roles seamlessly without disrupting access.
- Use the Cluster Validation Wizard periodically to ensure continued reliability.
By following this configure failover cluster Windows Server 2019 step by step guide, administrators can build a resilient and robust Windows Server cluster that supports high availability and efficient load handling.
When to Use Clustered File Servers vs SAN
Choosing between a Windows file server cluster and a SAN cluster depends on your organization’s specific needs, workloads, and infrastructure.
Clustered file servers are ideal for environments where high availability for shared files is crucial. They offer centralized access, simplified permissions, and seamless cluster storage management. Use cases include enterprise file sharing, hosting user home directories, and storing application data. Features like Scale-Out File Server (SOFS) enhance performance for SMB-based access, making clustered file servers a strong fit for Hyper-V and SQL Server deployments.
On the other hand, SAN clusters provide block-level access to storage and are preferred for high-performance, latency-sensitive workloads such as databases, virtualization platforms, and backup systems. SAN solutions offer higher scalability and better support for large-scale data centers.
In summary, use a Windows file server cluster when your goal is streamlined file sharing with built-in failover and redundancy. Opt for a SAN cluster when you need raw storage access with top-tier performance and flexibility across multiple platforms.
Conclusion and Key Takeaways
Clustered file servers provide a reliable, scalable, and high-availability solution for modern enterprises. From cluster shared volumes to SOFS and integrated failover capabilities, these systems ensure uninterrupted access to data and services.
Organizations looking to enhance fault tolerance and performance should consider deploying Windows file server clusters or Scale-Out File Server setups based on workload needs. While SAN clusters offer unmatched performance for certain use cases, clustered file servers strike a balance between manageability, availability, and cost-effectiveness.
With proper planning and configuration, businesses can build a resilient IT architecture capable of supporting growing demands with confidence.
